TPMS1309T

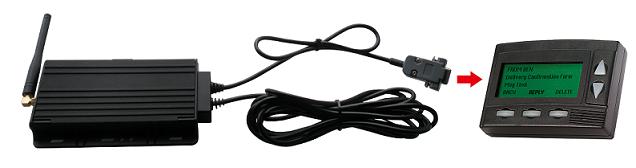

Display with RS232 interface to achieve integration with GPS or other on-board terminals
Specifically designed for truck fleets, to meet requirements of fleet trailer management

General Description

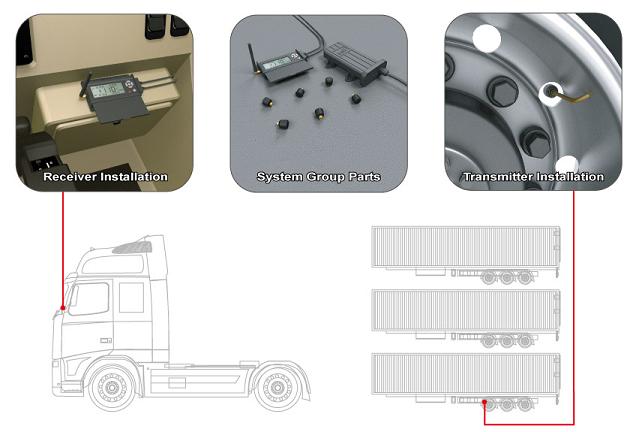

TPMS1309T is an OEM model designed for trucks, suitable for bus or truck manufacturers. The system consists of transmitter, receiver and smart booster (optional), through the data interface, tire pressure, temperature and other information can be sent to in-cab display system.

Product Feature
1. The compact receiver is suitable for installation anywhere on the truck head;
2. Through the data interface, signals and alarm information received by receiver can be transmitted to
    the in-cab display system and displayed
3. Functions such as Fast Leak Alarm, Low Pressure Alarm in three levels available
4. Easy installation, suitable for assembly process of the manufacturer
5. Booster available upon customer request
6. Simple component, easy maintenance.
7. Through the data interface, tire information can be integrated with audio-visual system or GPS to
    consist of the perfect vehicle management system.
8. Equipped with a smart booster to ensure long-distance communication
9. Hand tool and smart booster can communicate, to match trailer transmitters with in-cab Monitor

Alarm Function:
High Temperature Alarm issued when tire temperature exceeds 90℃.
Low Pressure Level 1 Alarm issued when tire pressure is 12.5% lower than the standard pressure.
Low Pressure Level 2 Alarm issued when tire pressure is 25% lower than the standard pressure.
Low Pressure Level 3 Alarm issued when tire pressure is 50% lower than the standard pressure.
High Pressure Alarm issued when tire pressure is 25% higher than the standard pressure.
Fast Leak Alarm issued when pressure inside the tire drops more than 3psi within 12s .
Transmitter Trouble Alarm issued when transmitter fails to work or there is RF interference.

Operation Function
Transmitter ID programming: Transmitter ID can be programmed for easy replacement .
Alarm Record Inquiry: automatically record the latest 10 alarm records.
Standard Pressure Programming: standard pressure for each tire can be programmed on monitor.
Pressure and temperature unit selection: pressure and temperature unit can be selected.
Hook-up or Drop trailer: to match trailer transmitters with in-cab monitor.

Receiver
• The Receiver body is light and compact, easy to install
• Standard data interface for data communications of various types of vehicles
• High sensitivity and powerful function

 Transmitter
•  External transmitters, beautiful appearance and easy to install
•  Durable high-strength material, resistant to high pressure and high temperature
•  Water-proof, resistant to oil, dust and other  harsh environments
•  Monitor tire pressure accurately and response rapidly
•  Though security lock, transmitters are installed  firmly



Smart Booster
• Smart booster for long-distance communication
• Hand tool and smart booster can communicate, to match trailer transmitters with in-cab monitor
• Connected with continuous vehicle power, ensure full-time monitoring
• High-performance material, anti-vibration, water-proof and resistant to dust etc.

Hand Tool
• Light and portable design
• Humanization design, single-hand operation
• Reasonable button layout,  easy for programming and inquiry of functions.
• Easy menu operation



Specifications
