TPMS1209T08-R

Monitor can be attached to wind-shield, monitoring up to 38 tires
External antenna kit provided for reliable long distance communication
For truck fleets, to meet requirements of fleet trailer management

General Description

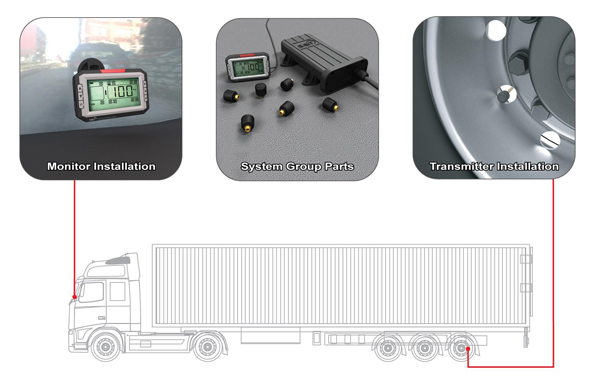

TPMS1209T08-R is designed for mid-sized trucks and heavy trucks, including container carrier truck, dump truck, semi-trailer and cargo trailers etc. The system consists of large LCD screen monitor, screw-on transmitters, external antenna kit and standard booster(optional), which is ideal for truck fleets. The system can monitor maximum 38 tires.

Product Feature
1. Powerful functions including low pressure alarms in 3 levels, fast leak alarm and standard pressure
    setting etc.
2. Monitor connects to continuous power to ensure full-time monitoring
3. Design of the whole system matches the truck perfectly
4. Monitoring up to 38 wheels
5. Equipped with external antenna and cable to ensure long-distance communication
6. Simple operation for function programming and inquiry

Alarm Function:
High Temperature Alarm issued when tire temperature exceeds 90℃.
Low Pressure Level 1 Alarm issued when tire pressure is 12.5% lower than the standard pressure.
Low Pressure Level 2 Alarm issued when tire pressure is 25% lower than the standard pressure.
Low Pressure Level 3 Alarm issued when tire pressure is 50% lower than the standard pressure.
High Pressure Alarm issued when tire pressure is 25% higher than the standard pressure.
Fast Leak Alarm issued when pressure inside the tire drops more than 3psi within 12s .
Transmitter Trouble Alarm issued when transmitter fails to work or there is RF interference.

Operation Function
Transmitter ID programming: Transmitter ID can be programmed for easy replacement
Alarm Record Inquiry: automatically record the latest 10 alarm records
Standard Pressure Programming: standard pressure for each tire can be programmed on monitor
Pressure and temperature unit selection: pressure and temperature unit can be selected.

Monitor
•  Monitor with industry design, match the interior decoration perfectly
•  Alarm issued in audio and visual etc, can be noticed even in noisy environments
•  Adjustable LCD display view angle
•  Large LCD to display pressure or alarm information
•  White LCD backlight for easy screen view
•  Reasonable button layout for easy programming and inquiry of functions
•  Connect to continuous power supply to ensure full-time monitoring



Tramitter
• Screw-on  transmitters, beautiful appearance and easy to install
• High-strength material, wear-resistant and resistant to high pressure and high temperature
• Water-proof and resistant to oil and dust etc.
• High precision monitoring of tire pressure and quick response
• Security lock for safe use
• Large pressure monitoring range with high precision



Standard Booster
• Standar Booster for long-distance communication
• Connected with continuous vehicle power, ensure full-time monitoring
• High-performance material, anti-vibration, water-proof and resistant to dust etc

Specifications
