TPMS1509R

DIN-slot Monitor, monitoring up to 38 tires
External antenna kit provided for reliable long distance communication

General Description

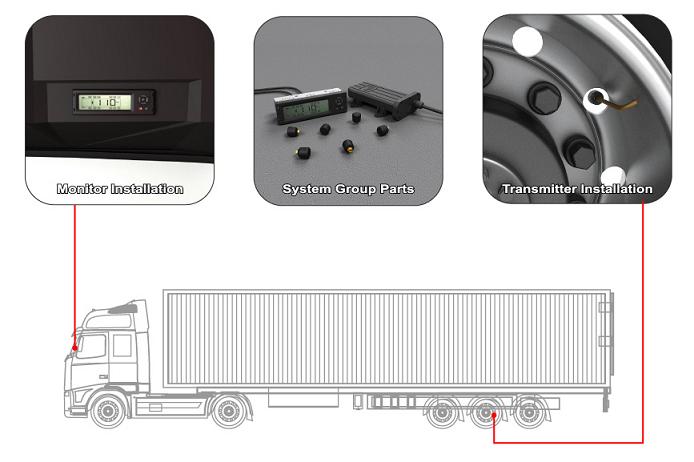

TPMS1509R is designed for OEM which is suitable for various mid-sized trucks and heavy trucks, including container carrier truck, semi-trailer and cargo trailers and other vehicles, including the embeddable monitor, screw-on transmitters, external antena kit and standard booster(optional).

Product Feature
1. The monitor is embedded into the preserved slot for electronic device,  well fit truck interior style and
    becomes an independent terminal display system;
2. All tire information can be displayed on the large LCD screen for driver’s view
3. Various functions including Fast Leak Alarm, Low Pressure Alarm in three levels etc.
4. Easy installation, suitable for assembly process of the manufacturer
5. Booster available upon customer request
6. Simple component, easy maintenance.

Alarm Function:
High Temperature Alarm issued when tire temperature exceeds 90℃.
Low Pressure Level 1 Alarm issued when tire pressure is 12.5% lower than the standard pressure.
Low Pressure Level 2 Alarm issued when tire pressure is 25% lower than the standard pressure.
Low Pressure Level 3 Alarm issued when tire pressure is 50% lower than the standard pressure.
High Pressure Alarm issued when tire pressure is 25% higher than the standard pressure.
Fast Leak Alarm issued when pressure inside the tire drops more than 3psi within 12s .
Transmitter Trouble Alarm issued when transmitter fails to work or there is RF interference.

Operation Function
Transmitter ID programming: Transmitter ID can be programmed for easy replacement
Alarm Record Inquiry: automatically record the latest 10 alarm records
Standard Pressure Programming: standard pressure for each tire can be programmed on monitor
Pressure and temperature unit selection: pressure and temperature unit can be selected.

Monitor
• Perfect DIN-slot screen, displaying mass
• Large LCD digital screen, displaying mass information in turn
• Beautiful and practical, monitor matches with interiors of truck perfectly
• Buttons are sensitive and easy to operate. Settings and inquiry function are complete
• Elegant color screen, non-glare, the data can be visible clearly



Transmitter
•  External transmitters, beautiful appearance and easy to install
•  Durable high-strength material, resistant to high pressure and high temperature
•  Water-proof, resistant to oil, dust and other  harsh environments
•  Monitor tire pressure accurately and response rapidly
•  Though security lock, transmitters are installed  firmly



Standard Booster
• Easy to install
• User can choose whether to install according to the vehicle type


Specifications
